Pre‑defined BESS layouts: Reduce risk before permitting

Battery energy storage design has become more sophisticated, but many of the delays teams face today are surprisingly basic. They do not come from complex simulations or advanced electrical modelling. They come from layouts that fail their first serious review.

That is exactly the problem RatedPower’s pre‑defined BESS layouts were designed to address.

By embedding regulation‑compliant spacing and manufacturer‑aligned layout logic directly into the design process, the feature helps teams start from a layout that already reflects how BESS projects are reviewed, approved, and built in the real world.

Most teams do not lose time because they cannot place containers on a map. They lose time because spacing, access, and safety assumptions get challenged late, when changes are hardest and most expensive to make.

This “spacing surprise” is not an edge case, studies by the U.S. Department of Energy, the American Clean Power Association, and major EPC and permitting firms consistently show that site layout, safety clearances, and spacing compliance are among the most common and costly causes of BESS redesign and permitting delays worldwide.

Modo Energy reports that permitting delays have already forced project withdrawals exceeding $2 million per project in New York alone, while engineering firms such as Kimley‑Horn document that post‑approval layout changes can add months to more than a year of additional permitting review when site plans must be resubmitted.

The spacing surprise: where good layouts fall apart

In early design stages, most BESS layouts look reasonable. Containers are aligned, PCSs are placed logically and the footprint fits inside the site boundary. At that point, nothing appears wrong.

The problems usually start later. During permitting, fire safety review, or detailed engineering checks, someone asks a simple question: Are you sure these distances comply?

That is when the spacing surprise appears.

Clearances between containers turn out to be too tight while emergency access corridors are narrower than expected. The front and rear of containers were treated the same, even though access and safety requirements differ. What looked like a finished layout now needs revision.

Those revisions rarely stay contained. A small spacing change affects block dimensions. That alters MV cable runs, termination points, access roads, and the single‑line diagram. What should have been a quick fix becomes a redesign loop. This is where compliance risk becomes a schedule risk.

What compliance risk looks like in practice

Compliance risk in BESS design is rarely abstract. It shows up in very tangible design decisions that were made too early, with too little guardrail support.

In practice, compliance risk shows up in a few recurring ways:

• Container‑to‑container distances that fall below fire safety or insurer separation requirements

• PCS placements that block required access for maintenance teams or emergency responders

• Layouts that conflict with manufacturer‑specific block designs and spacing logic

• Oversimplified spacing assumptions that ignore the fact that container fronts, backs, and sides have different clearance needs

These issues are easy to overlook when layouts are created manually. On screen, a meter more or less rarely looks significant. In review, it often is.

Pre‑defined BESS layouts exist to remove that guesswork.

Why a compliance‑first layout changes the outcome

The value of RatedPower’s pre‑defined BESS layouts is not that they help teams place containers faster. It is that they change the starting point.

Instead of beginning with a blank canvas and hoping spacing assumptions hold up later, teams start with layouts built around:

• Manufacturer‑specific deployment patterns

• Common regulatory and safety clearance requirements

• Industry‑standard spacing logic

This approach does not lock teams into a single configuration. It gives them a layout that is already aligned with how projects are evaluated, allowing design effort to focus on optimisation rather than correction.

When spacing and access are correct from the start, downstream elements like MV routing, termination points, and deliverables remain coherent instead of drifting out of sync.

Clearances explained, without the technical overload

Spacing rules often sound complex because they are described in standards and diagrams. At layout level, they usually come down to three practical considerations.

Separation between containers

Battery containers cannot be packed arbitrarily close together. Separation distances reduce fire risk propagation, ensure ventilation, and create physical buffers that reviewers expect to see. Treating these distances as uniform or approximate is one of the most common causes of rework.

Working corridors and access space

Every BESS site needs clear, usable paths for maintenance teams and emergency services. These corridors must exist in the layout, not be imagined later. When access is added as an afterthought, it often forces container relocation.

Front, back, and side are not the same

Containers have doors, panels, cooling interfaces, and cable entry points that dictate how much space is needed on each face. A single spacing value rarely works everywhere. Compliance‑first layouts reflect this reality automatically.

From topology to layout: a guided, review‑ready workflow

RatedPower’s approach follows a simple but powerful sequence:

1. Select a pre‑defined topology that matches the BESS architecture you are modelling.

2. Apply built‑in spacing and clearance rules aligned with safety and regulation norms.

3. Choose an orientation strategy such as mirrored or back‑to‑back blocks to fit the site efficiently.

4. Let the layout drive downstream design, rather than constantly reacting to it.

Because this logic is embedded early, teams can iterate on capacity, orientation, or site constraints without breaking compliance assumptions every time.

Real‑world examples where spacing makes or breaks the layout

Sungrow: tightly integrated blocks

Sungrow systems are designed as highly standardised blocks, with specific spatial relationships between battery containers and PCSs. Using a pre‑defined layout that already reflects Sungrow’s block logic avoids small spacing errors that can cascade quickly such as changes to PCS alignment, which affects cabling distances and documentation consistency.

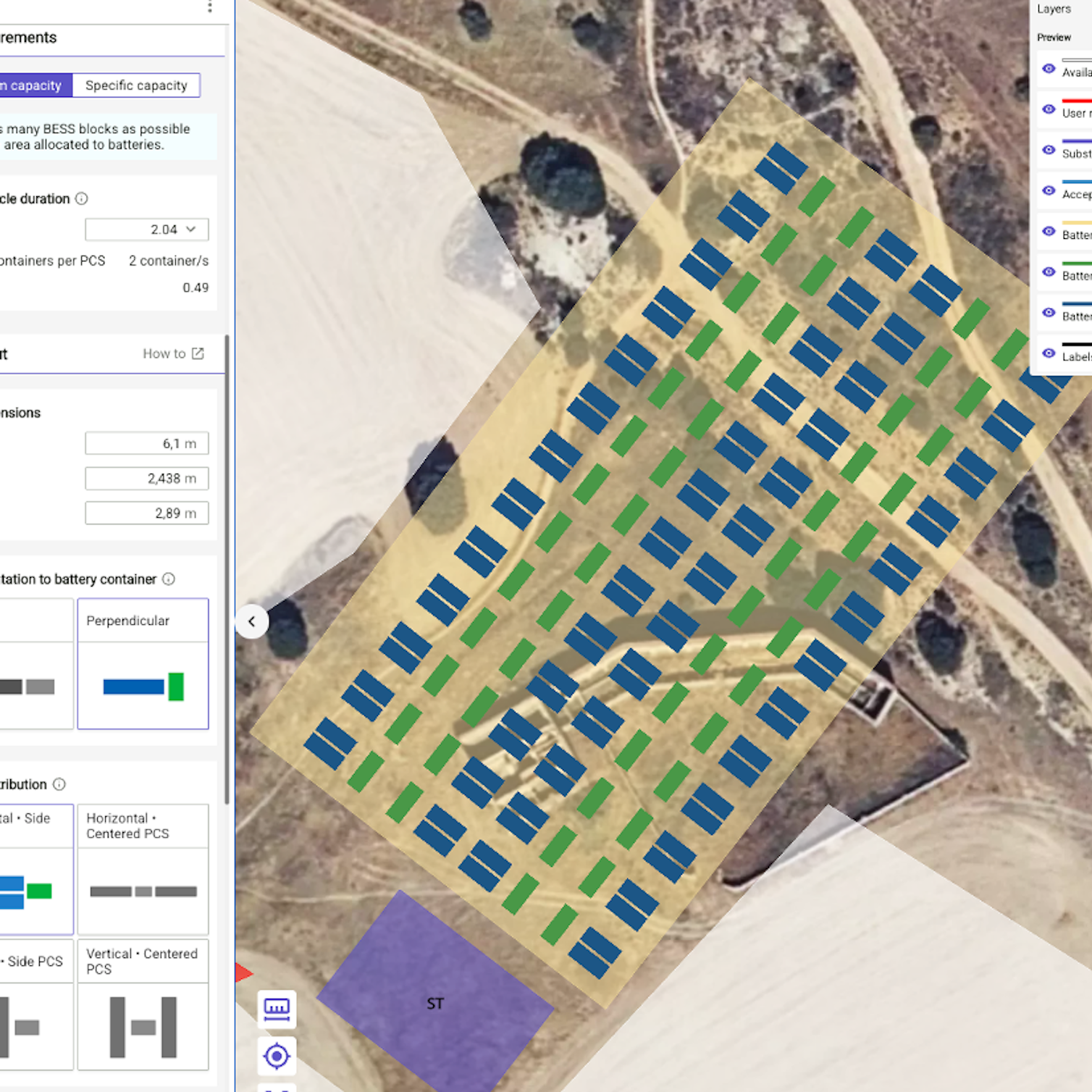

Example 2-hour configuration with four ST2752UX containers paired with a SC5000UD-MV PCS

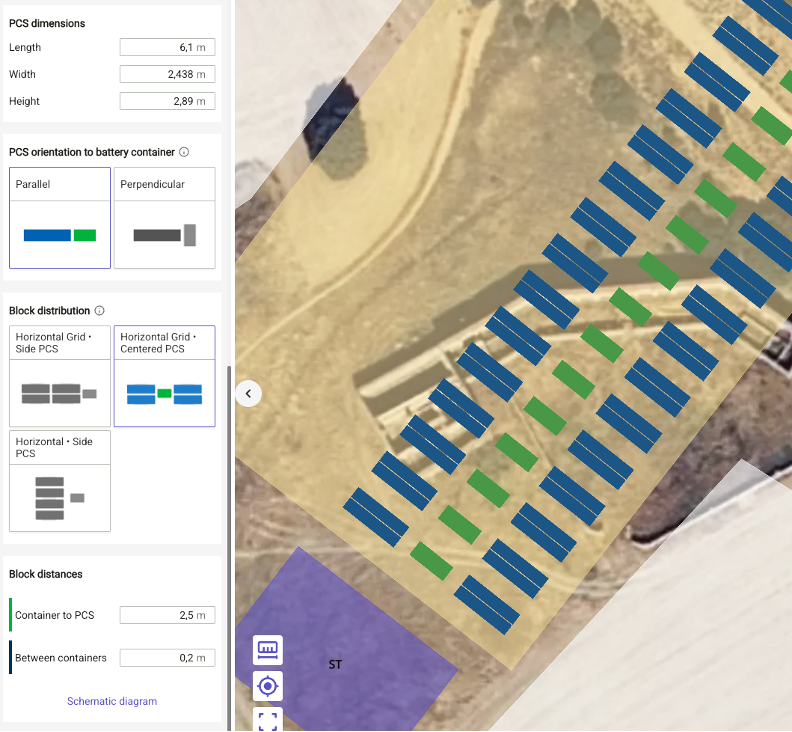

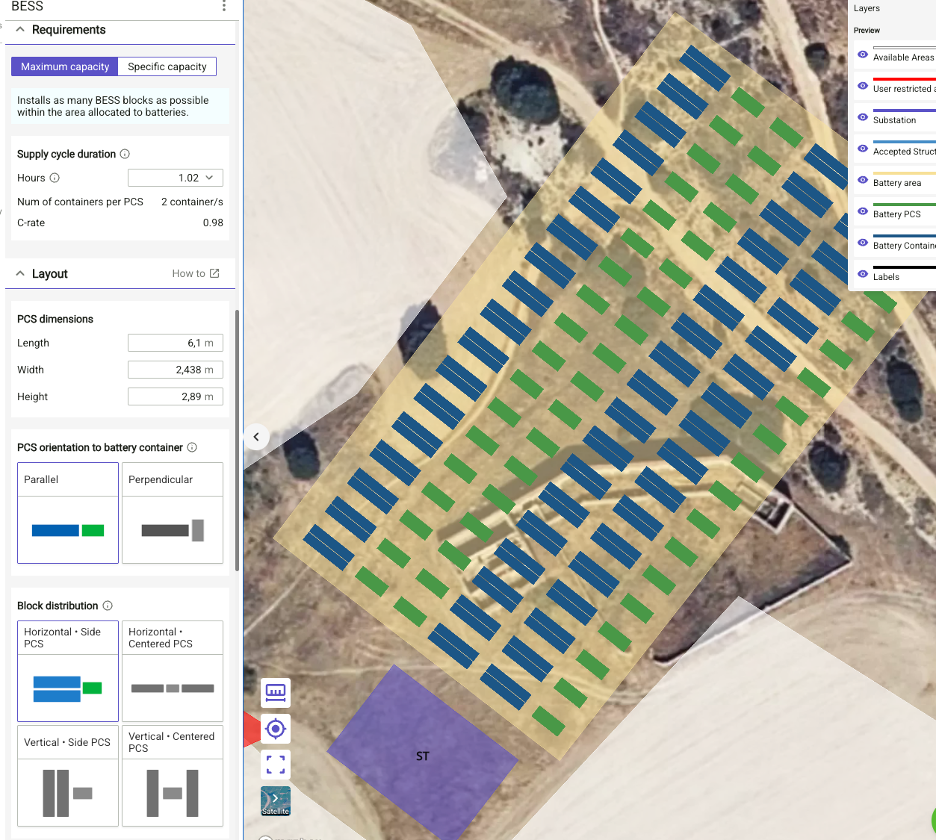

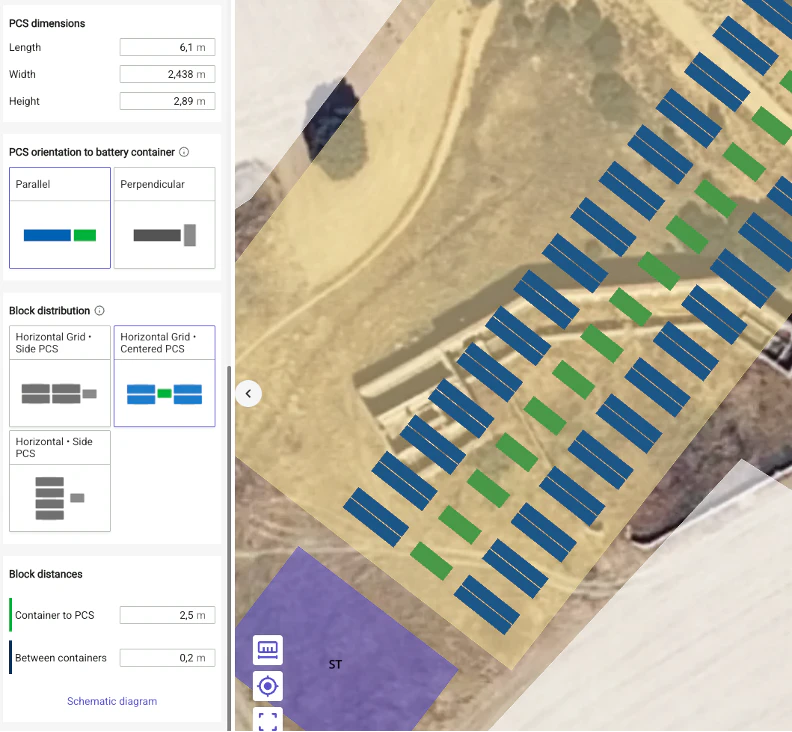

Example 1-hour configuration using two ST2236UX containers with a SC4000UD-MV PCS

Fluence: flexibility with boundaries

Fluence deployments allow more flexibility in PCS selection and arrangement, but spacing rules still matter. Access corridors, separation distances, and clearance zones must remain intact as configurations change. Pre‑defined layouts allow teams to adapt component choices while maintaining a compliance‑ready foundation.

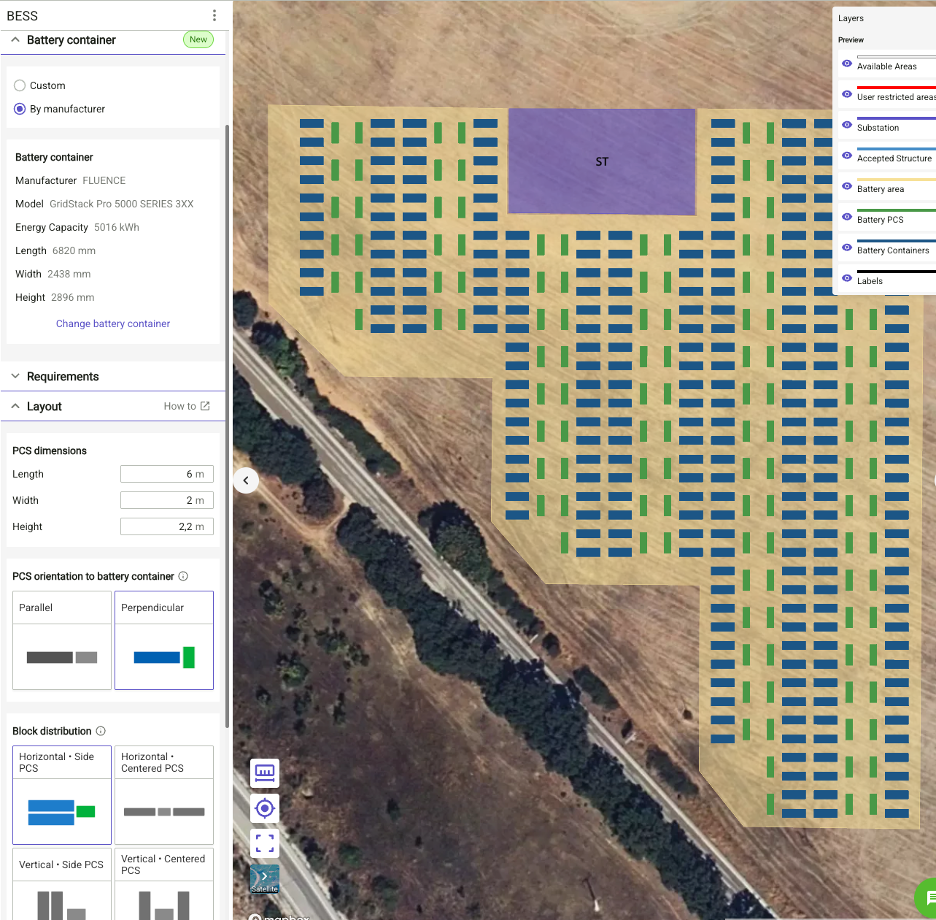

Below is an example of a Fluence deployment modeled using the tool:

CATL: high‑capacity blocks where spacing assumptions are heavily scrutinised

CATL layouts are typically built around large, containerised blocks designed to maximise energy density at site level. Because each container represents a high concentration of stored energy, separation distances, access corridors, and service clearances tend to be reviewed more closely. Starting from a CATL‑aligned, pre‑defined layout helps ensure those spacing assumptions are explicit, consistent, and review‑ready from the outset.

The examples below show how different PCS choices change the overall configuration.

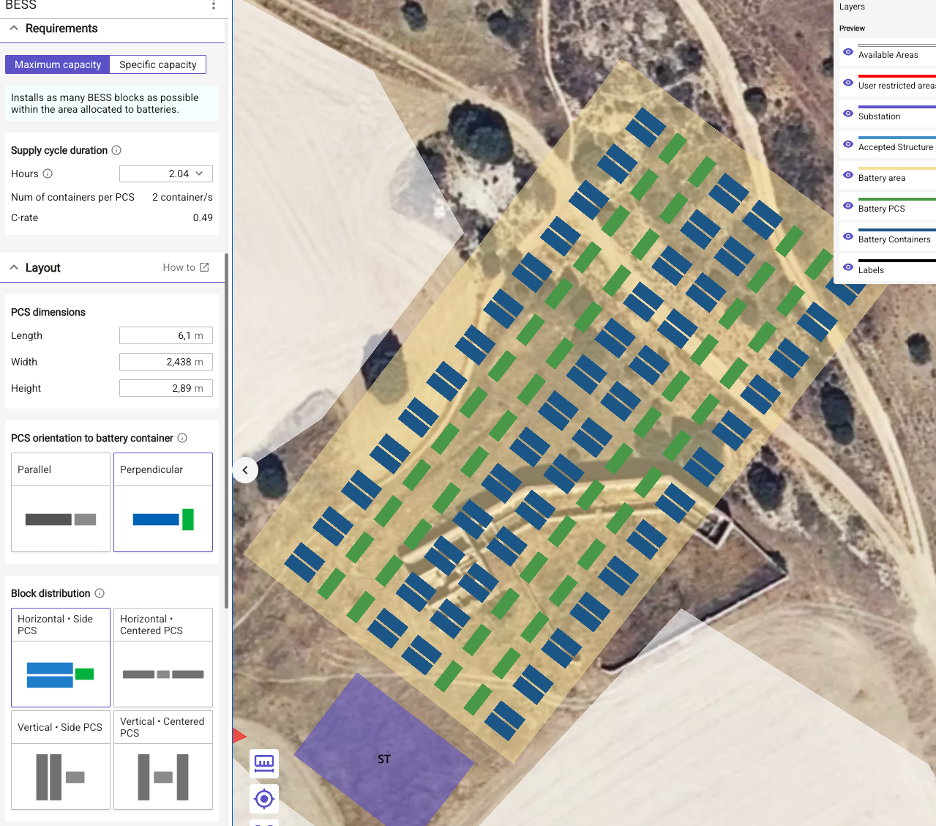

 For 2-hour applications: 2x CATL EnerC+ (4.07 MWh each) with an SMA SC 4000 UP-US PCS

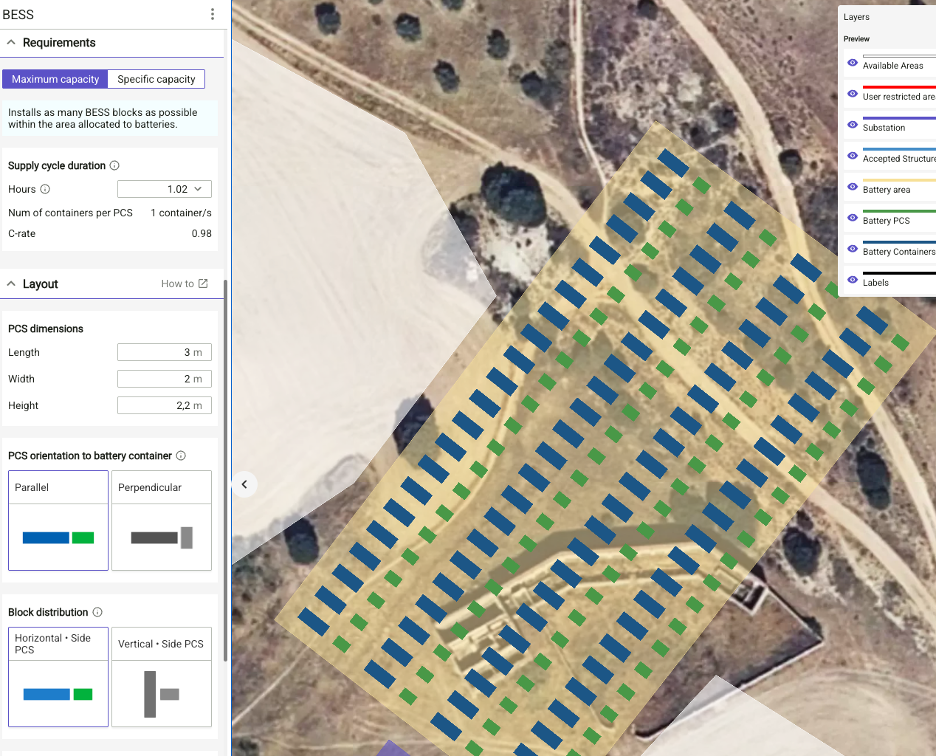

For 1-hour systems: 1x CATL EnerC+ with a Power Electronics PCS like the FP4010MH or FP4000K

These templates follow standard clearance requirements and alignment conventions, ensuring your design matches how CATL systems are typically installed.

When default layouts are not enough

Some projects fall outside standard patterns. They may involve unusual container counts, stricter local fire codes, or site‑specific constraints.

In these cases, pre‑defined layouts still play a critical role. They provide a compliant baseline that teams can customize deliberately, instead of improvising from scratch. Adjustments are made on top of a known‑good starting point, reducing risk even when exceptions apply.

Teams that skip this step often rebuild entire layouts. Teams that start from compliant templates usually make targeted changes and move on.

Designing for confidence, not correction

Compliance‑first layouts shift BESS design from a reactive process to a confident one. Instead of hoping a layout passes review, teams know it was built with review criteria in mind.

By embedding spacing, access, and manufacturer logic into the first draft, RatedPower’s pre‑defined BESS layouts help projects move faster precisely because they are less fragile.

They reduce redesign cycles, de‑risk permitting discussions, and keep layouts, MV routing, and documentation aligned from the start.
