Solar PV & the german grid: a pre-validation guide

German solar developers can pre-validate solar interconnection viability before filing for connection using PRISM for grid capacity and queue screening, and RatedPower for engineering-ready layout generation. Together, the tools reduce the risk of documentation gaps that cause additional review cycles or rejection by German grid operators.

Germany brought more than 16 GW of solar online in 2025, pushing installed capacity to 117 GW. The transmission network has not kept pace. Grid operators approved 2,000 km of new high-voltage permits last year, almost double the prior year's figure, and are still behind. The country needs roughly 22 GW more in the next ten months to hit its 2026 target, while heat pumps and electric vehicles are pulling more load from local lines each year.

The result is a connection queue under severe strain. DACH developers are seeing more than 720 GW of requests against roughly 78 GW of available capacity, a ratio that has tightened grid operator scrutiny considerably. Projects that arrive at the solar interconnection window with gaps in their technical documentation are increasingly likely to face additional review cycles or outright rejection. Rough siting estimates are no longer sufficient. You need to know, before filing, whether a site can realistically progress past feasibility.

Why grid pre-validation matters before you file for connection

The cost of discovering a grid constraint after engineering has started is not just financial. It is also a timeline issue. Re-screening a site, revising a layout, or switching substations mid-development can add months to a development program. In a market where grid operators are prioritizing mature, technically complete applications, arriving late with a revised package puts you behind projects that moved through cleanly the first time.

Pre-validation addresses this by front-loading the siting analysis. It means running every critical constraint, grid capacity, land classification, and environmental restriction, against the candidate parcel before a single design decision is made. Problems that would otherwise surface at permitting get resolved at the desk.

This is the stage where a combined PRISM and RatedPower workflow has the most leverage.

How PRISM screens sites for grid capacity and terrain constraints in Germany

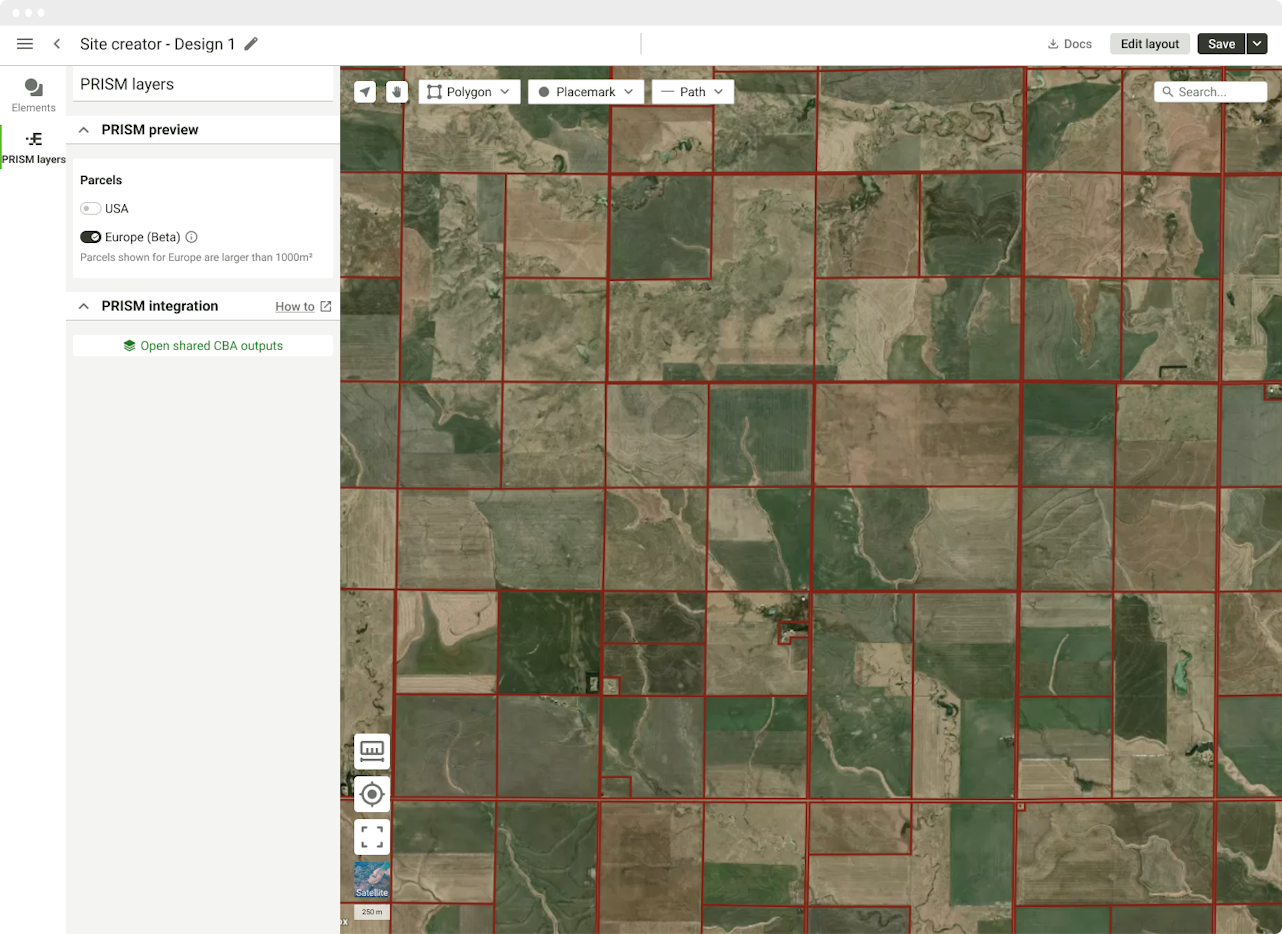

PRISM is an energy analytics platform built to give developers a complete picture of siting constraints before any capital is committed. For the German market specifically, it draws on data sourced from the official Marktstammdatenregister (MaStR) registry, integrating daily generation, consumption, and storage data to support more efficient site prospecting. Developers can filter by capacity, grid connection status, and operational status of plants already connected in the area, giving an evidence-based view of where the local grid is most likely to have headroom for additional injection.

Two data layers in PRISM are particularly useful for German solar interconnection screening.

The first is the Power Plant layer, which maps nearby wind, solar, and storage generators drawn from the MaStR registry. Because this layer shows the generating capacity already connected to each part of the network, it provides a practical proxy for estimating substation load. A substation surrounded by recently commissioned projects with high aggregate capacity is a stronger signal of congestion risk than one with sparse nearby generation. This is the starting point for ruling out areas where grid headroom is likely to be limited before engaging a grid operator directly.

The second is PRISM Germany Slopes, a capability that has become increasingly important as suitable land becomes more competitive in Germany. It lets developers apply slope thresholds across candidate parcels at the screening stage, immediately identifying terrain that would push civil works costs beyond viable levels or create shading and racking complexity that makes a site unbankable. Ruling out steep or irregular terrain early prevents engineering time being spent on sites that cannot deliver an acceptable return.

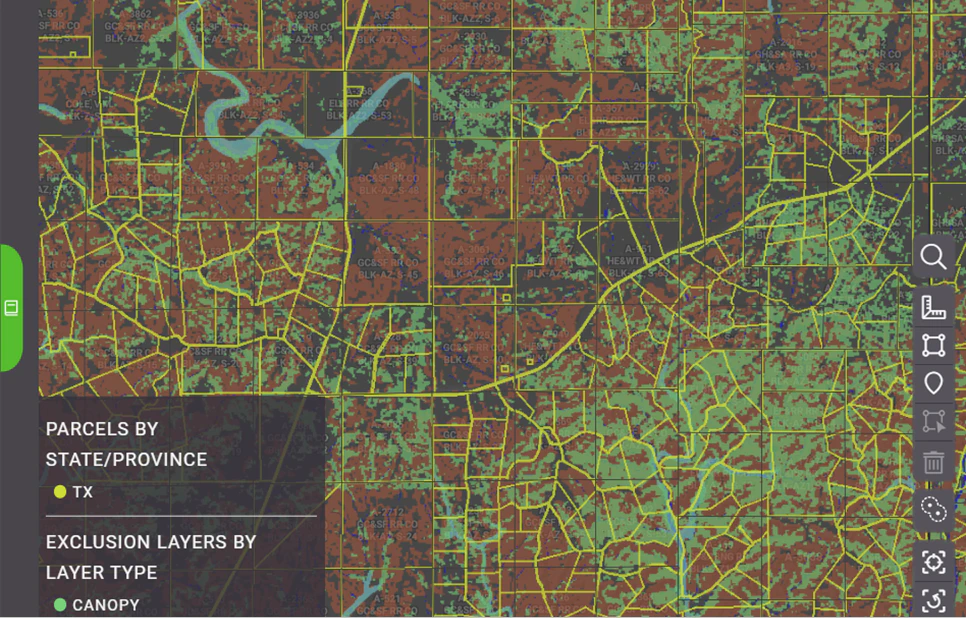

Solar resource quality and exclusion zones covering protected habitat, floodplains, and infrastructure crossings round out the initial screen. By the end of a PRISM analysis, a parcel has either earned further attention or been removed from the pipeline with a clear, documented reason.

For more on how grid congestion is reshaping connection timelines across European markets, see our analysis of grid congestion challenges in the Nordics.

Turning a promising parcel into a verified, buildable footprint

Once a parcel clears the initial screen, PRISM can take the analysis further and calculate how much of that land is actually buildable once all constraints are applied simultaneously. Slope thresholds, environmental restrictions, proximity to substations and transmission infrastructure, grid constraints, and exclusion zones from roads, pipelines, and protected areas are layered together to produce a net buildable area figure.

This step matters because gross parcel area and buildable area are rarely the same number. A 100-hectare site with a protected wetland running through it and a required buffer from a nearby pipeline may yield 60 usable hectares, which changes the project economics and the connection capacity you need to request. Knowing this before the design stage prevents the most common cause of layout rework: building to a footprint that the permitting process later revises.

The cleaned, constraint-defined site boundary can then be passed directly into RatedPower. The platform brings in terrain and solar resource data, applies the boundaries and exclusions already defined in PRISM, and prepares the site for layout generation. There is no need to redraw the perimeter or recreate constraints manually. The handoff is direct.

To understand how Germany's regulatory environment shapes which sites reach this stage, see our breakdown of Germany's solar regulatory environment.

Designing a grid-aware layout inside RatedPower

With the verified site boundary loaded, RatedPower generates a complete engineering-ready design for both the photovoltaic (PV) array and any co-located battery energy storage system (BESS). Every major design parameter is configurable: module type, racking system, inverter architecture, topographic constraints, electrical design parameters, cable layout, and correction devices.

Because the layout is generated against the actual buildable footprint from PRISM rather than a rough parcel boundary, the design reflects what can realistically be built. If grid requirements change after the initial design, for example a revised substation specification or an updated setback rule, RatedPower can update the affected parameters without requiring a full redraw in a separate computer-aided design (CAD) environment.

For co-located BESS projects, RatedPower now supports a wider range of validated manufacturer models, more flexible layout configurations, and improved cost and performance estimation, including CAPEX visibility and yearly degradation modelling that reflects real long-term asset behavior. This makes it possible to assess the financial profile of a storage component with the same rigour as the solar array from the earliest stages of development.

What permit-ready documentation looks like for German grid operators

German grid operators and permitting authorities expect a specific level of engineering detail in solar interconnection applications. RatedPower exports match that expectation directly. The documentation package includes single-line diagrams (SLDs), interconnection facility reports, substation sizing and cable configuration documentation, layout drawings with arrays, access roads, terrain constraints, restricted zones, and equipment areas marked, a bill of quantities (BoQ) linked to the specified equipment, power-flow model documentation matching the plant's electrical architecture, and historical and forecasted production data from PVGIS and NASA inputs.

Because every output is generated from real GIS boundaries and verified buildable acreage, the documents arrive at the level of specificity operators require. That reduces the likelihood of follow-up comment rounds, which are among the most consistent contributors to connection timeline overruns in Germany.

How combined siting and design data strengthens your application

A solar interconnection application that rests on pre-validated siting data and engineering-grade documentation is easier to defend at every stage of the approval process. Grid operators can verify the technical claims against the submitted layout. Investors can assess bankability against a design that has been tested against real terrain and real constraints. Landowners can see exactly what the development footprint covers.

The workflow described here, from PRISM siting screen through buildability analysis to RatedPower layout generation and documentation export, compresses a process that often takes many months into days. Problems that would otherwise surface at permitting are resolved earlier. Applications arrive complete. Reviews proceed more quickly.

If your team is developing PV or BESS projects in Germany or elsewhere in the DACH region, the BESS Design Handbook covers interconnection risk in detail alongside layout, equipment, dispatch, and financial considerations.
