How preliminary grouping decisions shape execution costs

Electrical grouping decisions made during feasibility cause rework in detailed engineering because they are typically applied after structures are placed, not before. When power station shapes adapt to an existing layout rather than driving it, the result is irregular configurations that increase cable perimeter, road crossings, and trench length. Grouping first eliminates that problem at the source.

If you have moved from feasibility to detailed engineering on a utility-scale solar plant, you have probably encountered some version of the same frustration: cable runs stretch further than expected, inverter loading needs redistributing once trench paths are fixed, and a layout that looked clean at the preliminary stage requires time-consuming adjustments before it can go to procurement.

The cause is almost always the same. Electrical grouping, the decisions about where power stations sit and how low-voltage (LV) groups are distributed across the DC field, are applied after structures are placed. That forces grouping logic to conform to an arbitrary geometry rather than shaping it. The result is power station configurations that are irregular, elongated, or split across roads, and the costs show up later in cable quantities, trench excavation, and rework hours.

Why grouping decisions made late cost more

The relationship between power station shape and cable length is geometric. Consider two layouts that cover identical site areas and have the same number of structures per power station. If one has compact, square-like power station configurations and the other has irregular or elongated shapes, the second requires materially more cabling. The reason is perimeter: both layouts cover the same area, but the irregular version has a larger boundary, and every extra meter of that boundary translates to additional DC string cable runs and trench length.

At utility scale, this compounds. A project with dozens of power stations can accumulate excess cabling from nothing more than suboptimal grouping geometry. Road crossings add further cost: each time a cable crosses a road, it adds conduit, excavation, and construction complexity. Poor grouping typically produces more of them.

The conventional workflow makes this worse because grouping decisions come late. By the time electrical engineers calculate actual cable runs, structural layout is largely fixed. Adjustments at that stage are expensive, and some compromises become permanent.

Why power station shape drives cable length at utility scale

The most common problematic configurations have recognizable patterns. Eccentric power stations, where the station sits entirely outside the structure group it serves, create long cable runs between the station and the furthest structures. C-shaped groupings, in which the group wraps around an obstacle or road, create excess boundary length along three sides. Fishbone patterns, in which structures fan out from a central spine, force cabling to follow the spine rather than take direct routes.

Each of these is a consequence of the same underlying issue: the grouping algorithm was optimized for symmetry rather than for keeping the power station at the center of its group. Symmetric groups often look clean on paper, but when the power station ends up off-center relative to its group, the resulting cable runs are longer than necessary.

An algorithm oriented toward centrality produces a different result. Power stations are placed along roads as a first priority. LV equipment is distributed within the DC field. String cabling is minimized as an objective. The geometry that emerges from this logic produces more compact, square-like power station shapes with fewer road crossings and shorter DC string runs. In practice, this approach can reduce road crossings by around 50% compared to symmetry-oriented grouping on the same site, according to RatedPower's product team.

Learn more by listening back to this webinar: Beyond preliminary design: Smarter PV layouts and electrical configurations.

What a grouping-first approach looks like in practice

The practical implication is a change in sequencing. Instead of placing structures, generating a layout, and then fitting the grouping to that geometry, the grouping logic drives the layout from the start. Power stations are positioned along roads first. LV groups are formed around the DC field distribution that minimizes the string cable. The structural layout then fills in around that electrical skeleton.

This produces a layout that is electrically coherent before any detailed engineering begins. Cable routes are shorter because the geometry was designed around them. Power stations are centrally located within their groups because centrality was the optimization target. There are fewer road crossings because the algorithm positioned equipment to avoid them.

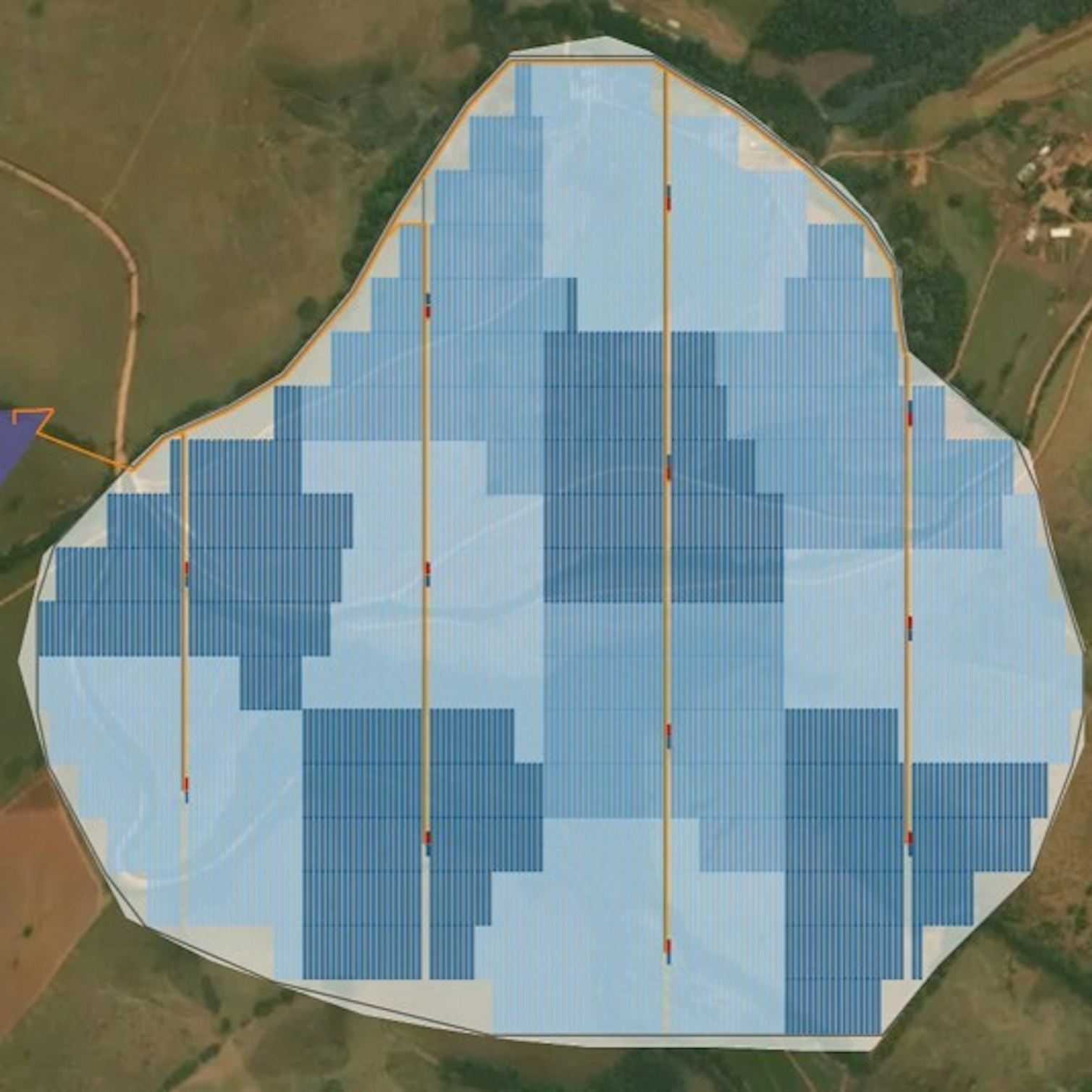

RatedPower's grouping algorithm works on this logic. It forms power station shapes around a set of grouping axes, vertical reference lines placed at the midpoint between roads, and prioritizes placing power stations along those axes so that each station sits at the center of its group configuration. The result is a compact, regular shape that minimizes perimeter and, therefore, cabling.

Iterating layout and electrical design in the same model

Even a well-formed initial grouping will need adjustment. Site boundaries create irregular zones. Terrain features shift optimal road positions. Off-taker requirements change inverter loading targets. The question is whether those adjustments can be made quickly and whether the engineer can see the electrical consequences in real time.

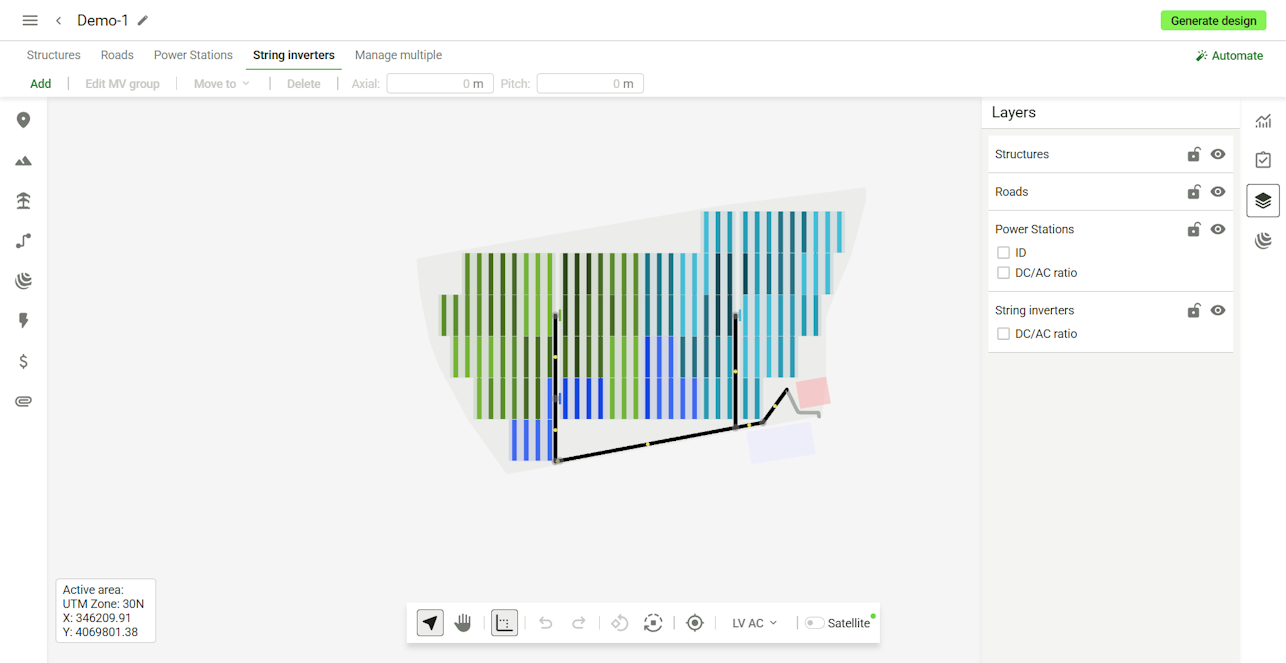

RatedPower's Layout Editor addresses this directly. Engineers can edit LV and medium-voltage (MV) groups manually within the same model: reassigning structures between string boxes, modifying MV group connections, moving and aligning string boxes using reference distances, and adding or removing boxes as needed.

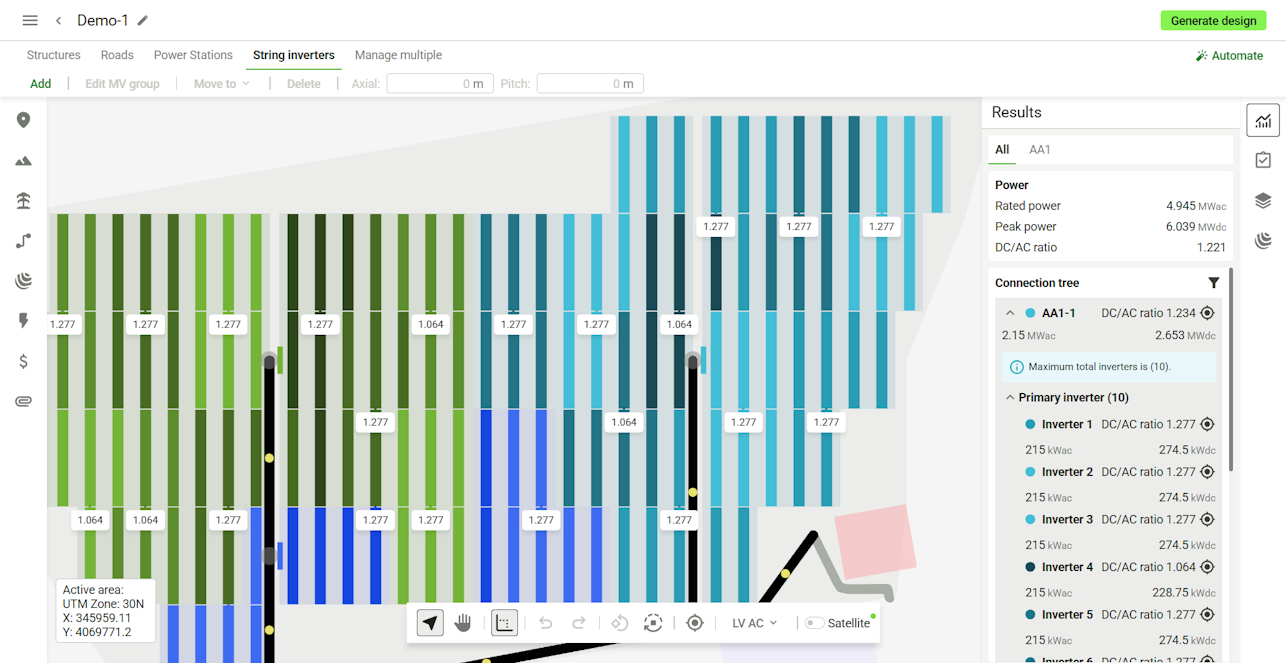

The electrical metrics update immediately. Reassign a structure to a different inverter, and the direct current to alternating current (DC/AC) ratio for that inverter updates in the layout view. Reposition a string box relative to a road, and trench routing recalculates instantly. There is no export step, no rebuild in a separate tool, and no waiting for a batch recalculation.

This matters specifically for the feasibility-to-execution transition. The layout produced during feasibility is the same model refined during detailed engineering. Decisions made early carry forward without translation loss between tools. When the design changes, it changes once, in one place, and every dependent metric reflects it.

Comparing cable strategies before committing

One of the more consequential decisions in solar layout design is the choice between cable strategies: minimizing DC string cables, which run from structures to string boxes, versus minimizing LV DC cables, which run from string boxes to inverters. Both strategies are valid. They produce different cable-length distributions, cross-section profiles, and total material costs. The right choice depends on the specific project.

What makes this decision tractable is the ability to evaluate both strategies on the same layout before committing. RatedPower's Layout Editor makes this possible. In a comparison run by the RatedPower product team on a sample project, the minimize-DC-string and minimize-LV-DC strategies produced the following results: the minimize-DC-string configuration significantly reduced total string cable length, with 63% of cables at a 6 mm² cross-section. The minimize-LV-DC configuration increased string cable length by more than double, with only 16% of cables at 6 mm².

Neither is automatically better. A project where string cable material costs are the dominant concern will favor minimize-DC. A project where LV DC cable trenching is particularly expensive, perhaps due to hard substrate or complex soil conditions, might favor minimize-LV-DC despite the longer string runs. The point is that the trade-off should be a deliberate choice based on project-specific numbers, not a default inherited from the tool.

From feasibility layout to detailed engineering without rebuilding

The conventional separation between feasibility and detailed engineering exists partly because the tools used at each stage are different. Preliminary layouts are generated in one environment. Cable calculations happen elsewhere. Energy simulations run in a third tool. At each handoff, something gets lost: assumptions do not transfer cleanly, geometry gets approximated, and engineers rebuild work that has already been done.

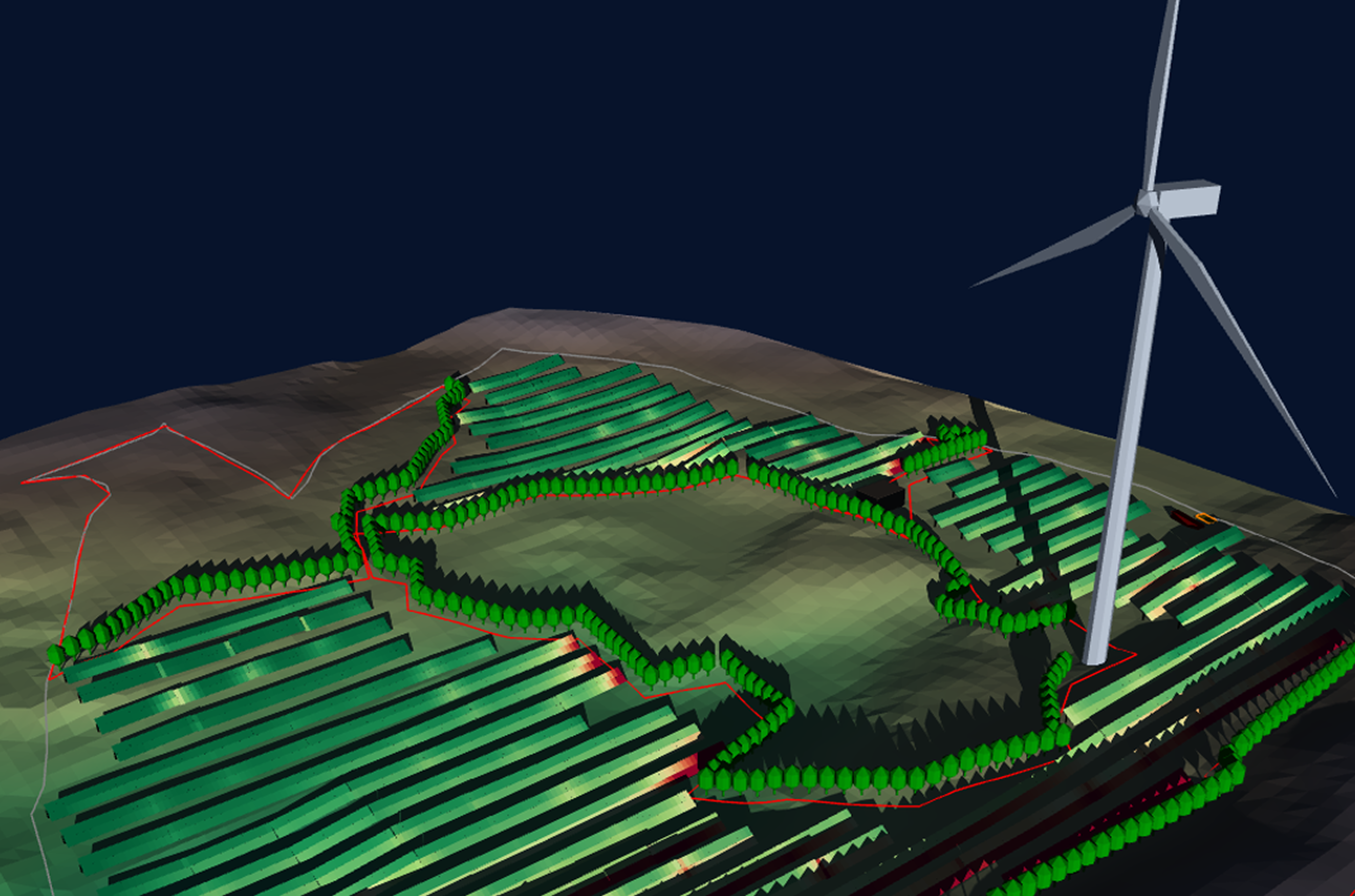

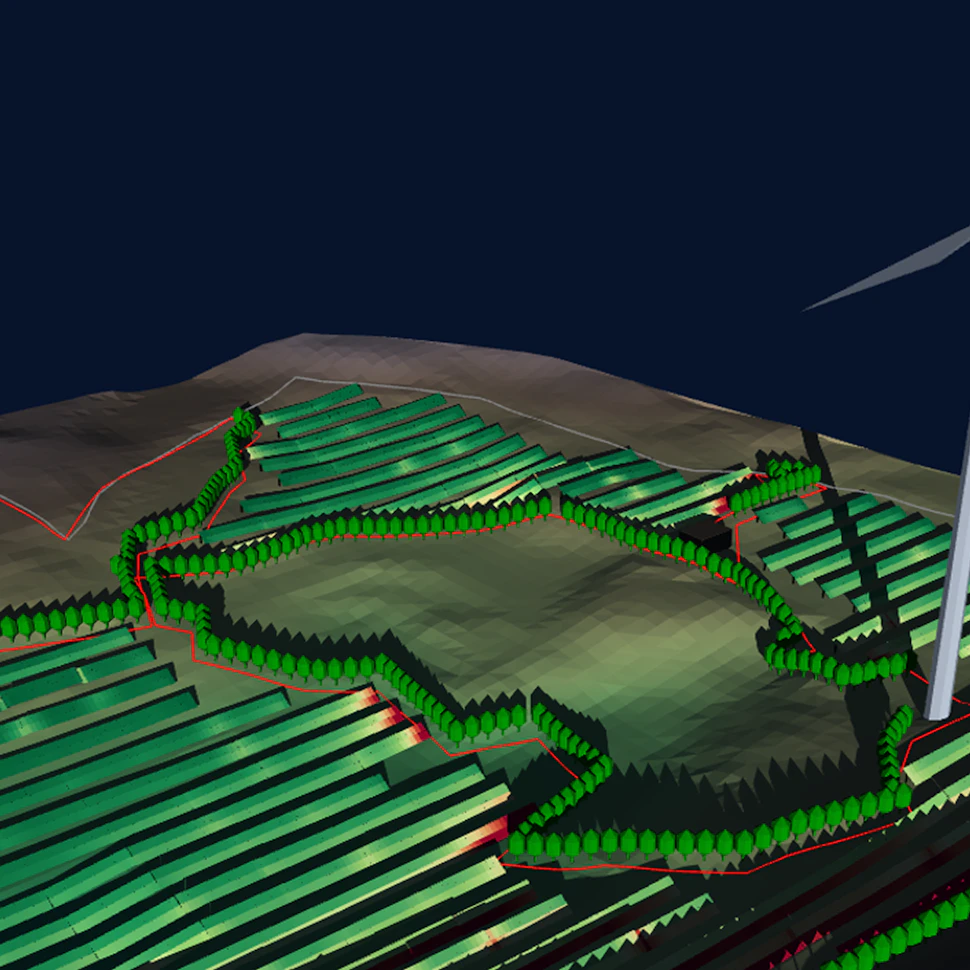

RatedPower integrates these stages. 3D energy simulations run directly on the edited layout, so the energy yield differences between grouping strategies are visible in the same environment where the grouping decisions are made. Bill of quantities (BoQ) regenerates from the edited layout with a single action, with cable lengths and cross-sections aligned to the final configuration. Clipping losses per inverter are visible in the 3D energy results, so an engineer working on a hilly site can compare how different grouping configurations affect energy production before committing to a design.

The workflow improvement is straightforward: the layout from feasibility is the same layout that goes into detailed engineering. Design decisions accumulate rather than restart. Rework caused by late-stage grouping adjustments drops because the grouping was done correctly at the start, and any subsequent adjustments have been visible in context.

For the engineering teams working on active project pipelines in markets where detailed engineering speed matters, that is a concrete difference in project delivery time.

Frequently asked questions

What is electrical grouping in solar plant design?

Electrical grouping is the process of determining which structures connect to which string boxes or inverters, and where the resulting power stations are located within the plant layout. It determines the backbone of the DC field: how long cable runs need to be, where trenches must be cut, and how inverter loading is distributed across the site. Because these decisions affect both capital cost and energy yield, they are best made at the start of layout design rather than applied after structures are placed.

Why do irregular power station shapes increase solar layout costs?

Irregular or elongated power station shapes have larger perimeters than compact, square-like configurations covering the same area. At utility scale, a larger perimeter means longer DC string cable runs and more trench length. Eccentric power stations, C-shaped groupings, and fishbone patterns all produce excess perimeter relative to the area they serve. Compact grouping minimizes that perimeter, reducing both cable material quantities and excavation costs.

What is the difference between minimizing DC string cables and minimizing LV DC cables?

DC string cables run from structures to string boxes. Low-voltage (LV) DC cables run from string boxes to inverters. Minimizing string cables keeps individual module runs short, which typically reduces total cable length and the proportion of larger-cross-section cables required. Minimizing LV DC cables shortens the string box-to-inverter runs, which can reduce trench length where those runs cross roads or run long distances. In one RatedPower product team comparison, the minimize-DC-string approach produced 63% of cables at 6 mm² cross-section; the minimize-LV-DC approach reduced that to 16%, with string cable length more than doubling. The right choice depends on the specific site, terrain, and procurement context.

To see how RatedPower’s Layout Editor handles grouping, cable strategy comparison, and 3D energy simulation on your project geometry, request a demo.
